Bender Step-Saver and Washer/Releaser

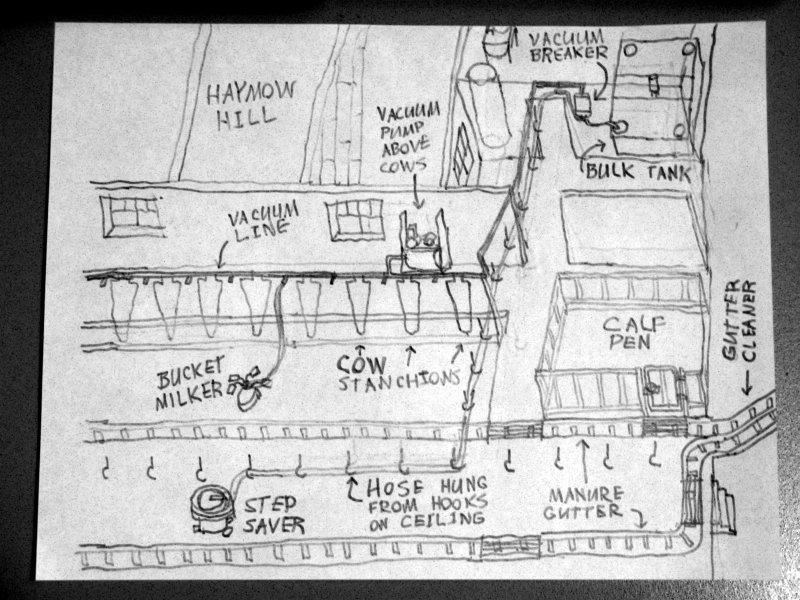

Freehand paper drawings of how a complete Step Saver system was installed in a typical dairy barn, also including other common barn structures.

The Bender Step-Saver and Washer/Releaser were invented and patented by Lloyd Bender of Hayward, WI, USA in the 1950s. Both The Step-Saver and the Washer/Releaser were once extremely common in the 1960s on small family dairy farms in the United States, to reduce the labor of bucket milking before the milk pipeline became popular.

The Bender Machine Works in Hayward, WI continues to be in business but now manufactures private label milk pipeline washing systems.

Usage

(Expanded topic section from Dairy farming article.)

As barns began to increase in size from perhaps 6 to 12 cows to 30 or 40 cows, the bucket milker became a very laborious milking system. As the barn length increased, the farmer had to walk an increasing distance from the cow to the milk bulk tank to dump the collected milk. An early vacuum milk-transport system known as the Step-Saver was developed to save the farmer the trouble of carrying the heavy steel buckets of milk all the way back to the storage tank in the milkhouse. The system used a very long vacuum hose coiled around a receiver cart, and connected to a vacuum-breaker device in the milkhouse.

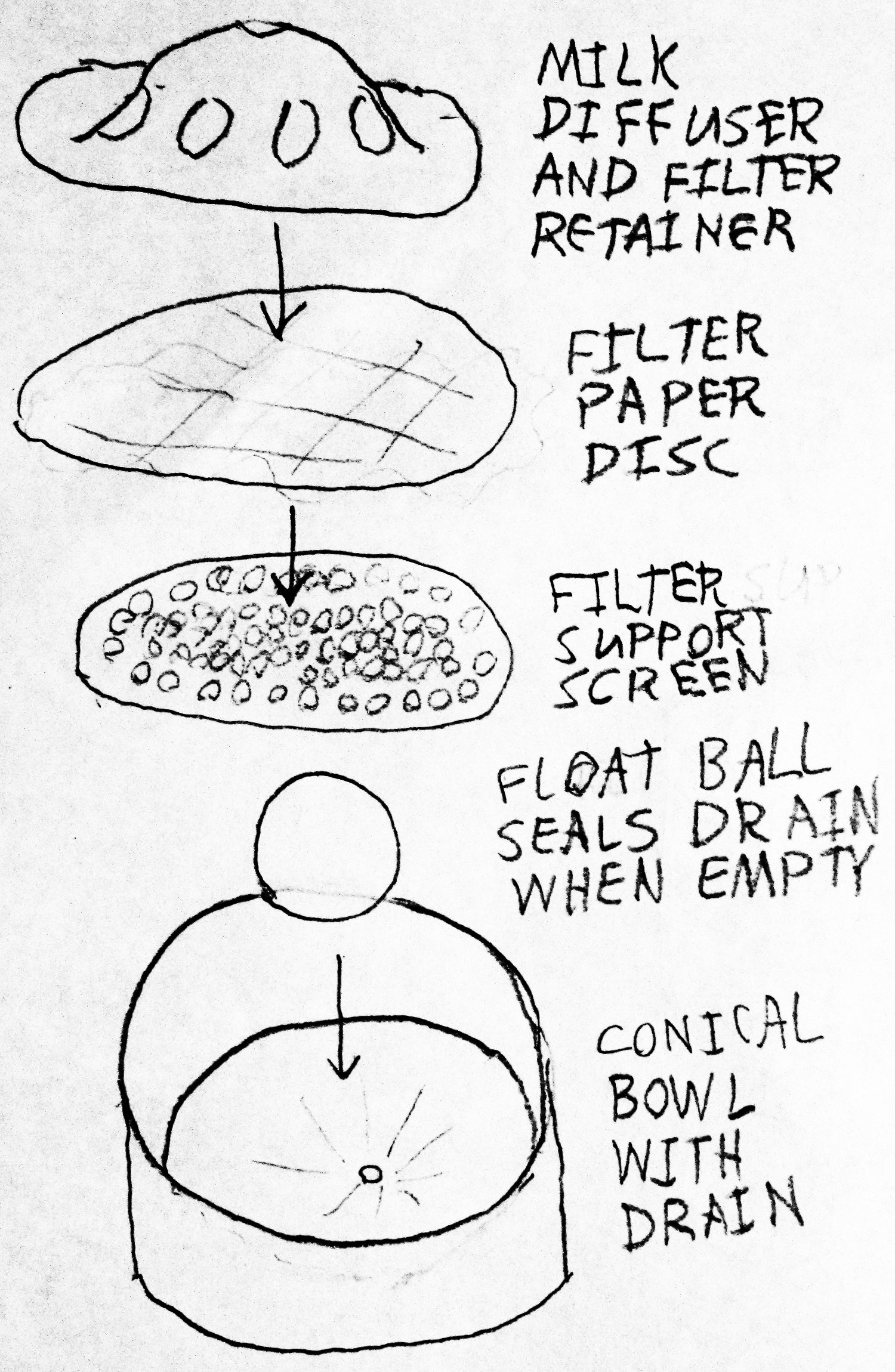

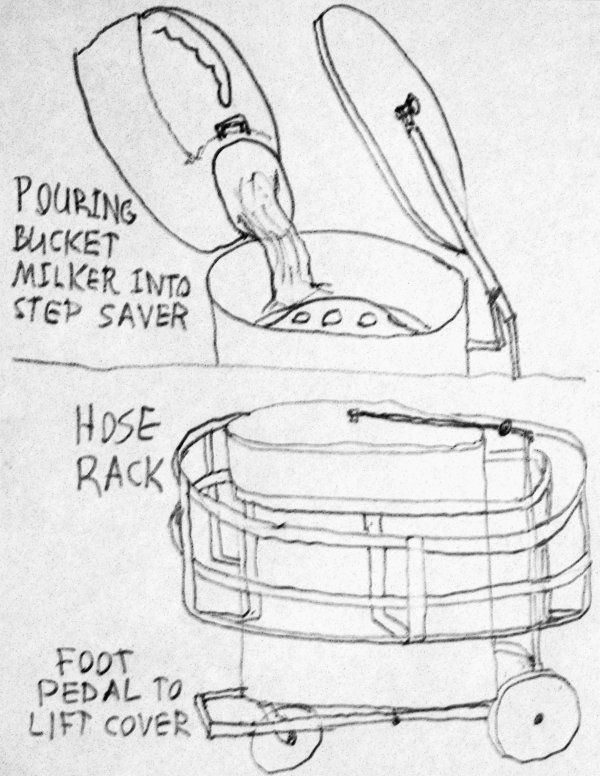

Following milking each cow, the bucket milker would be dumped into the receiver cart. A foot pedal on the base of the cart lifted the cover, which kept contaminating dust and debris out of the cart, and allowed the farmer to hold the heavy bucket milker with both hands while pouring. A diffuser plate in the top of the cart prevented milk from splashing out while rapidly pouring the milk, and a large filter disk under the diffuser removed any debris from the milk.

Milk collected in a chamber below the filter, and was slowly sucked through the long hose to the milkhouse. When empty, a large float ball in the bottom of the cart would settle down over the drain hole to seal the line and retain system vacuum. When milk was poured into the cart, the ball would float up, unsealing the drain.

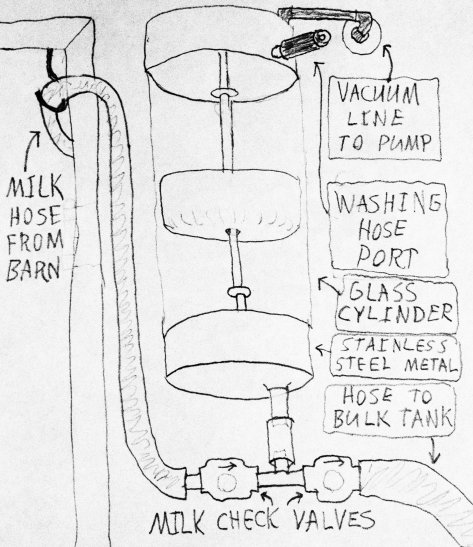

An automatic vacuum breaker in the milkhouse cyclically pulled milk from the cart into a glass jar using system vacuum, followed by a release of vacuum to atmospheric pressure, allowing the milk to flow into the bulk tank by gravity flow. When the float level in the jar dropped to SetPoint, system vacuum was reapplied to restart the process. Check valves on the vacuum breaker milk hose prevented milk from flowing backwards to the cart when the jar vacuum was released.

As the farmer milked the cows in series, the cart would be rolled further down the center aisle, the long milk hose unwrapped from the cart, and hung on open hooks along the ceiling of the aisle.

Wisconsin legislative code

Use of the step saver and similar non-pipeline milk transfer systems is described in the legislative code of the Wisconsin Department Of Agriculture, Trade, and Consumer Protection (DATCP).

ATCP 60.10 Milking and milk handling systems.
(4) NON−PIPELINE SYSTEMS. If milk from milking animals is initially collected in a portable transfer receptacle and pumped to the milkhouse through a flexible tube, rather than being pumped directly to the milkhouse through a permanently mounted pipeline, the transfer receptacle and tube system shall comply with the following requirements:
(a) The portable transfer receptacle shall be constructed of stainless steel or an equally corrosion resistant metal, and shall have an overlapping self−closing cover. The receptacle shall be supported off the floor on a cart or mobile structure which can be easily cleaned.
(b) The tube used to transfer milk from the portable transfer receptacle to the milkhouse shall consist of a single length of transparent tubing material. The milk transfer tube shall be supported off the floor at all times. The interior milk contact surface of the transfer tube shall be mechanically cleaned, sanitized and dried after each use. The opening through which the milk transfer tube enters the milkhouse shall be kept closed when the tube is not in use. A milk transfer tube shall not be left suspended in a milking barn or parlor between uses, but shall be stored in the milkhouse.

Patents

Releaser and other wash equipment
