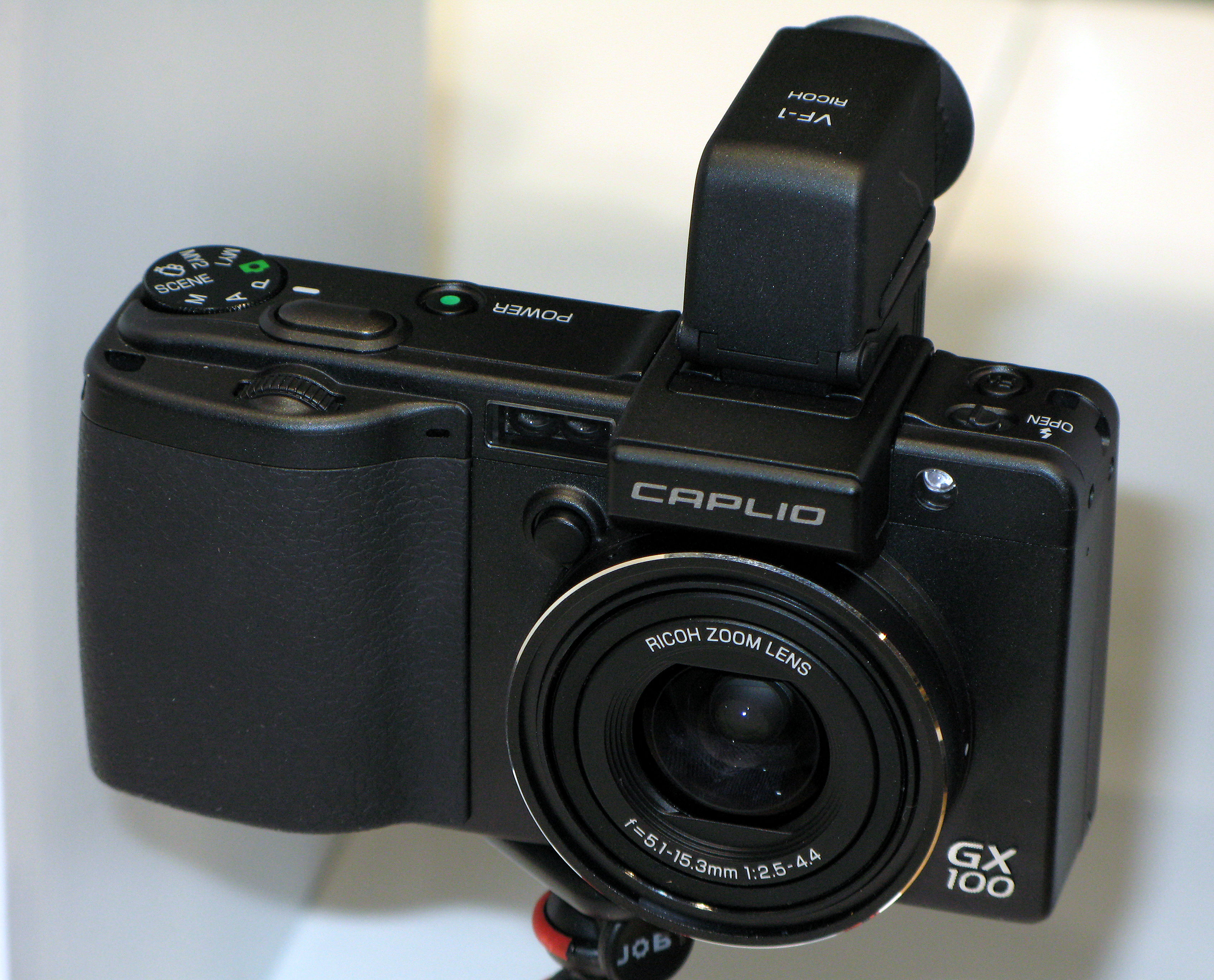

Ricoh Caplio GX100
The Ricoh Caplio GX100 is a compact digital camera. It has a wide angle zoom lens equivalent to 24 - 72 mm (35 mm film camera equivalent) and can take photos in Raw image format, using the Adobe DNG format. This camera was succeeded by the Ricoh Caplio GX 200.
Features
- 24 - 72 mm (expressed as 35 mm equivalent) f2.4 - f4.4 lens
- 10-megapixel CCD
- Full manual controls, plus auto and scene modes
- Optional external view finder clips on to hot shoe
- Can record in RAW, DNG format
- Camera shake correction function (CCD shift method)
Specifications
Imaging device 1/1.75″ CCD with 10.01 million effective pixels (total pixels: 10.3 million)
Lens Focal distance: 5.1 to 15.3 mm (24 to 72 mm converted to 35mm format camera); Aperture (F): F 2.5 to F 4.4 maximum;
Digital zoom 4.0x
Shooting range About 0.3 metres to infinity from lens tip
Macro shooting range About 0.01 m to infinity (wide angle) or 0.04 m to infinity (telephoto) from lens tip
Shutter Still: 180, 120, 60, 30, 15, 8, 4, 2, 1 – 1/2,000 seconds; Video: 1/30 – 1/2,000 seconds
Pixels Still: 3648 x 2736, 3648 x 2432, 2736 × 2736, 3264 × 2448, 2592 x 1994, 2048 x 1536, 1280 x 960, 640 x 480 Video: 640 x 480, 320 × 240
Picture-quality modes F (Fine), N (Normal), RAW
ISO sensitivity AUTO, AUTO-HI, 80, 100, 200, 400, 800, 1600
Flash Auto, red-eye reduction, force flash, flash synchro, soft flash, flash off, Throw distance: approximately 0.2 to 5 metres (wide angle), 0.15 to 3 metres (telephoto) with ISO set to AUTO
Focus Autofocus multi or spot, manual focus, snap, infinity (AF supplemental light also available)
Exposure adjustment Multi light metering (256 divisions)/ center weighted metering/ spot metering
Exposure compensation Manual correction (+2.0 to −2.0 EV 1/3 EV steps) Auto bracket feature ( ±0.3; ±0.5 EV)
White balance Auto; Fixed: Daylight, Overcast, Tungsten Light, Fluorescent Light, Manual White balance bracket feature
Recording media SD/SDHC memory card to 4 GB; multimedia card; built-in memory (26 MB)
Recording modes Photo: Still, Continuous, S-Continuous, M-Continuous, Auto, Program shift, Aperture-Priority, Manual exposure; Scene: Text, Sound; Movie
Recording formats Still: Compressed : JPEG (Exif version 2.21); Uncompressed : RAW(DNG) Text: JPEG (Exif version 2.21) Video: AVI (Open DML Motion JPEG format compliant) Audio: WAV (Exif ver. 2.21 μ-law)
LCD monitor 2.5 inch Transparent amorphous slilcon TFT LCD with about 230,000 pixels Self timer Operating time: 10 seconds or 2 seconds
Interval timer Shooting interval: 5 seconds to 3 hours (units of 5 seconds)
PC interface USB 2.0 miniB cable
Audio and Video interface Video OUT
Video signal format NTSC and PAL
Dimensions 111.6 (W) × 58.0 (H) × 25.0 (D) mm excluding projections
Weight About 220 grams not including battery, SD memory card, and strap; Supplied parts: 30 grams (battery and strap)
Power 1 Rechargeable battery (DB-60); AC adapter (AC-4c option); 2 AAA alkaline dry-cell batteries; 2 AAA Oxyride dry-cell batteries; or 2 AAA nickel-hydrogen dry-cell batteries
Shooting capacity CIPA-standard compliant; When DB-60 used: about 340 (290 when using the LCD viewfinder); When AAA alkaline dry-cell battery used: about 30 (20 when using the LCD viewfinder)
Temperature range for use 0°C to 40°C
List of Optional Accessories with Model Numbers
- External Viewfinder VF-1
- Wide-angle Conversion Lens DW-6
- Hood & Adapter HA-2
- AC Adapter AC-4c
- Soft case SC-45
- Neck strap ST-2
- Cable switch CA-1
- Rechargeable Lithium-Ion Battery DB-60
- Battery Charger BJ-6
